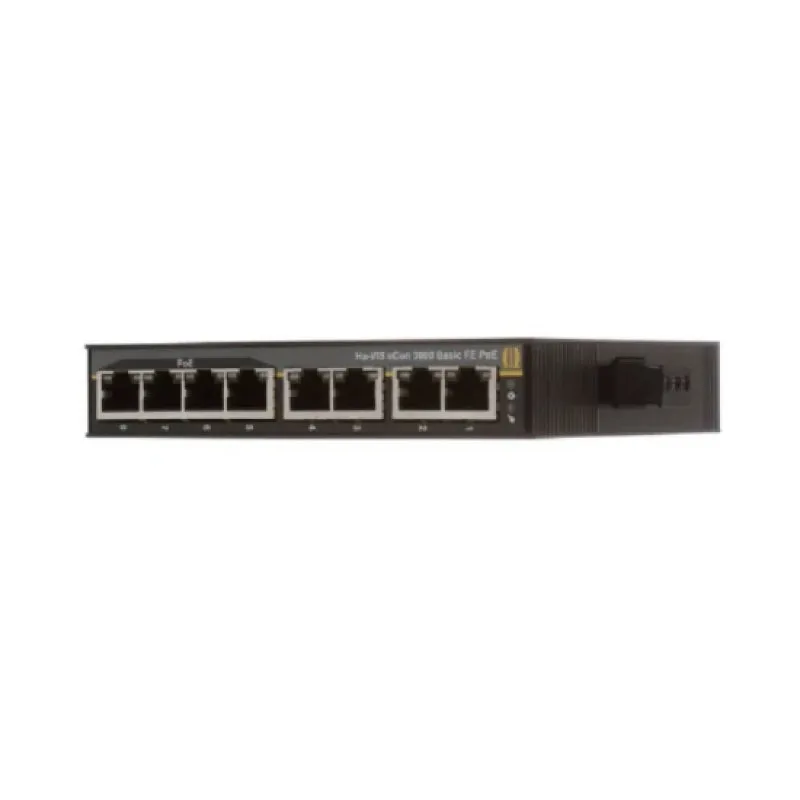

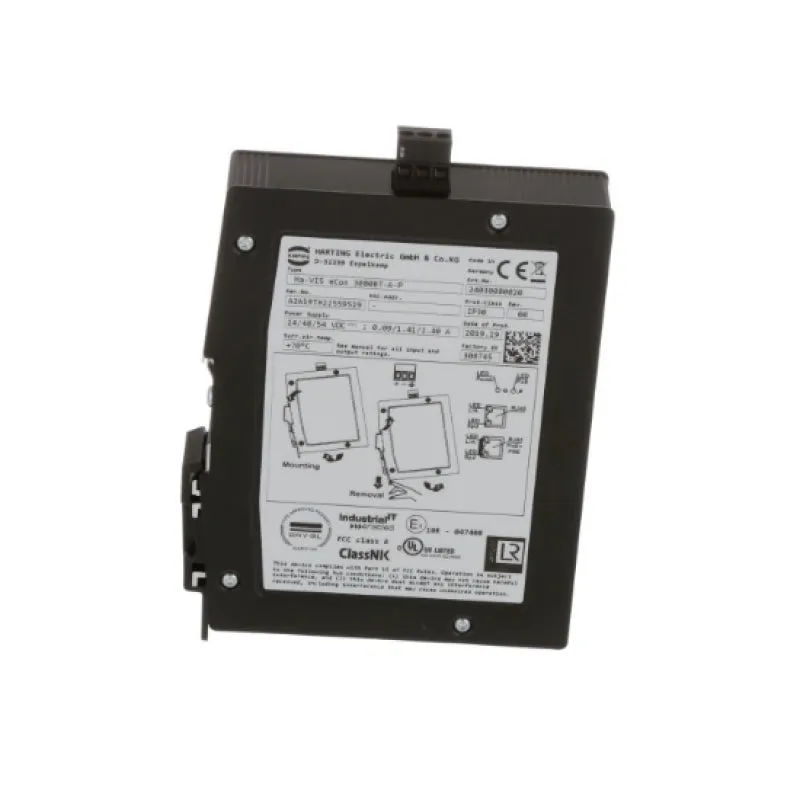

Name: Harting Electric 3000 Series Ha-VIS eCon Ethernet Switch 24030080020
SKU: 186948

The Ha-VIS eCon 3000 Fast Ethernet PoE family of unmanaged Ethernet switches is equipped with up to 8 Fast Ethernet ports and allow for cost-efficient and quick expansion and/or reconstruction of network infrastructures. The switches work as power sourcing equipment (PSE) and are capable of simultaneously providing the full PoE output of 34.2 watts on up to four ports. The slender design of the switches enables an extremely high packing density on the DIN rail. The selection includes various combinations of variants with RJ45 and fibre optic ports.

Specifications:

Life Hours: 1.14 million hour MTBF
Mounting Type: DIN Rail Mount
Number of Ports: 12
Operating Temperature: -40 to 70 C
Protocol Type: RJ45, FOC, PoE/PoE
Series: eCon 3000 Series
Supply Current: 90 mA
Supply Voltage: 10-60 VDC
Type: Unmanaged Switch

Features:

Energy Supply of Up to 4 Terminal Devices via PoE (137 Watts) in Accordance with IEEE 802.3at
Fast Ethernet Non-Blocking Switch Architecture in Accordance with IEEE 802.3
Variants with Industrial Temperature Range of –40°C to 70°C
Surge Protection and Reverse Polarity Protection
Minimum Energy Consumption Due to Energy Efficient Ethernet

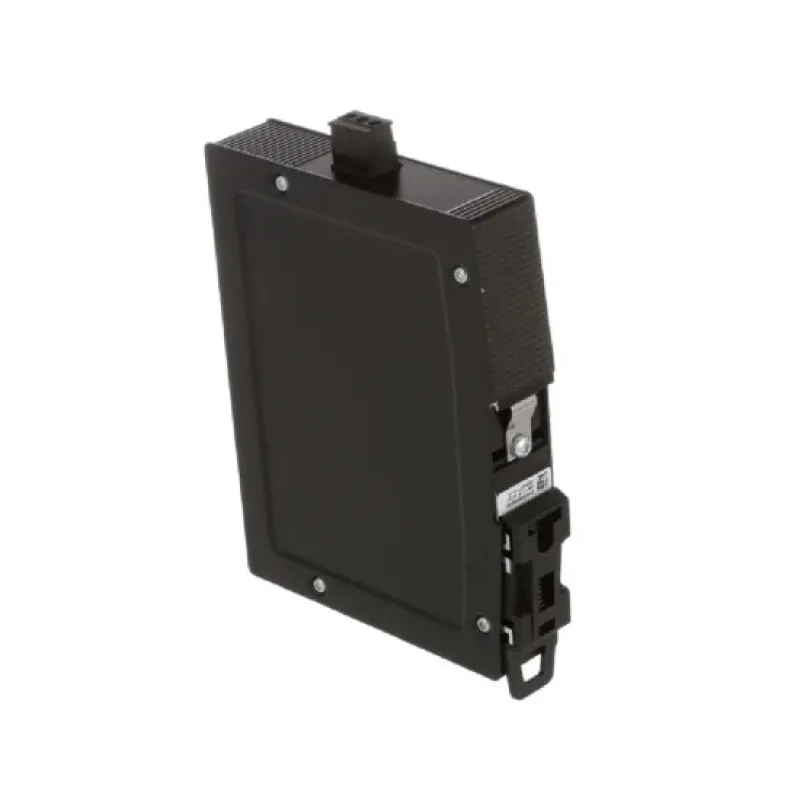

Optimised DIN Rail Bracket
