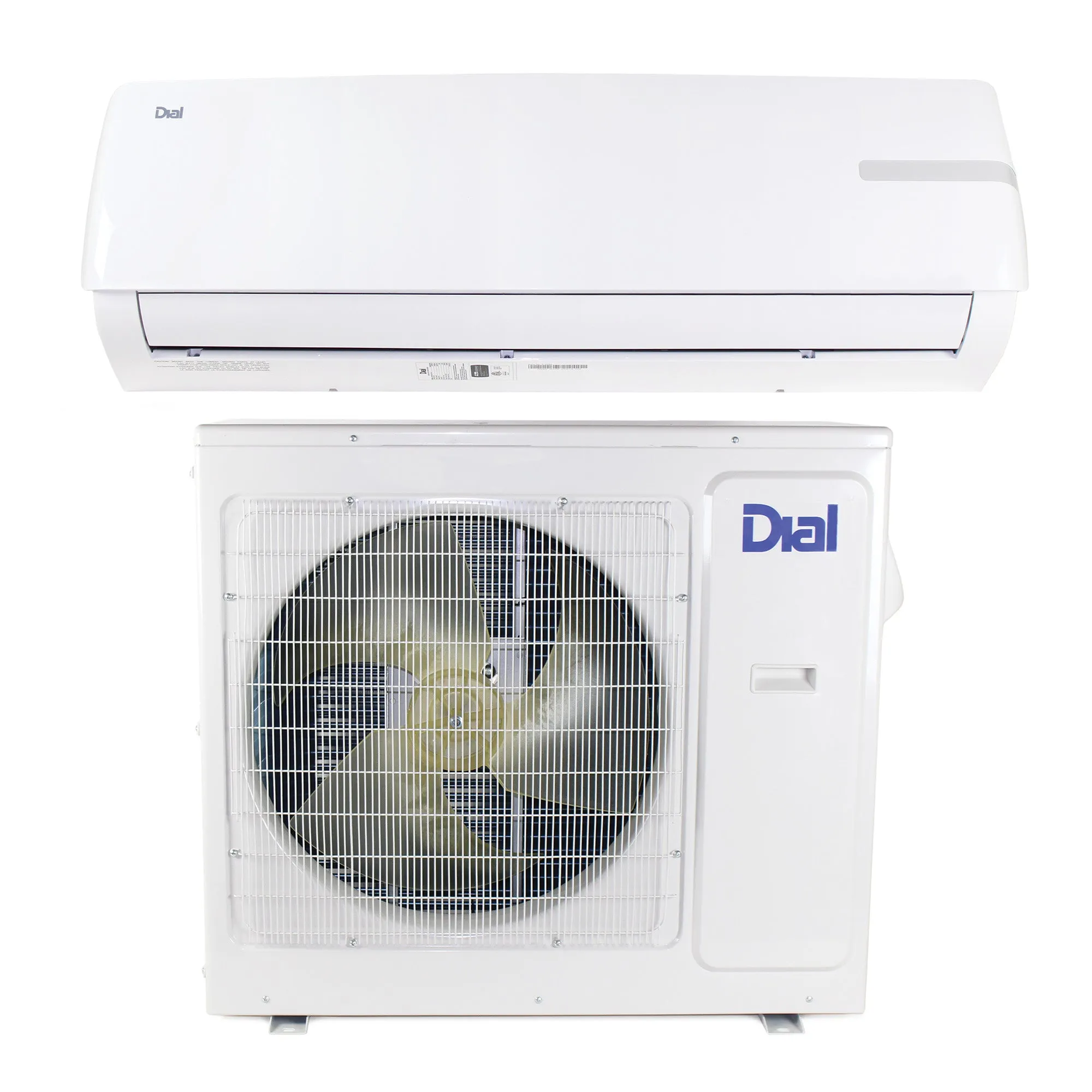

Dial mini-splits are designed to provide efficient cooling and heating to individual rooms or zones. Unlike conventional ducted heating and cooling systems, ductless mini-split systems only focus on one designated area, which reduces energy consumption and utility costs; applications include hot bedrooms, offices, home gyms, server rooms, garages, etc. Our ductless mini-splits are aesthetically pleasing, energy efficient and provide a lower cost due to non-ducted installation when compared to ducted heating and cooling systems.

Must be installed by certified technician.

Specifications:

Manufacturer: Dial Manufacturing
Manufacturer Part Number: 80500
Product Type: Air Conditioner
System Air Conditioning Type: Ductless Mini-Split Cooling Pump
Application Room Size: up to 1500 sq. ft.
Electrical Voltage: 208-230 V
Frequency: 60 Hz
No. of Phase: 1P
Compressor Motor Technology: Inverter
Refrigerant: R410A, 75.84 Oz
Max Pre-Charged Line-Set: 24.6'
Max Line-Set Length: 65.4'
Max Height - Indoor & Outdoor: 32'
Liquid Pipe Diameter: 3/8"
Suction Line Diameter: 5/8"
Performance Cooling Capacity: 23,000 BTU/hr
Heating Capacity: 23,000 BTU/hr
SEER / SEER2 (Cooling): 21.0 BTU/W.h / 20.5 BTU/W.h
HSPF / HSPF2 (Heating): 10.5 BTU/W.h / 8.6 BTU/W.h
EER (Cooling): 12.2 BTU/W.h
COP (Heating): 3.57 W/W
Air Circulation: 706 CFM
Moisture Removal (Dehumidifier): 0.63 Gallons/hr
Indoor Unit Air Circulation (UH/H/M/L): 706/647/559/441 CFM
Indoor Unit Air Circulation (Direction): 4-Way
Indoor Unit Sound Level (UH/H/M/L/Silent): 50/47/42/36/33 dB
Outdoor Unit Sound Level: 58 dBA
Electrical Current Input Cooling: 8.3 A
Electrical Current Input Heating: 11.1 A
Electrical Power Input Cooling: 1880 W
Electrical Power Input Heating: 2500 W
Electrical Fuse Size: 30 A
Min Circuit Amp: 20 A
Working Temperature Range - Cooling: 5 degrees F to 115 degrees F, Heating: -4 Degrees F to -75 Degrees F
Approval & Certification - Industry Certification: ETL / AHRI, Energy Saving Energy Star Rating: Energy Star 6.1
Compressor Warranty: 7 years
Parts Warranty: 5 years
Indoor Unit Dimensions: 43 5/16" x 12 13/16" x 9 5/8"
Outdoor Unit Dimensions: 34 7/8" x 31 5/16" x 14 3/8"
Indoor Unit Weight: 32.19 lb.
Outdoor Unit Weight: 134.48 lb.
Includes: Outdoor Unit, Indoor Unit, 16' Line-Set, Remote
Requires additional refrigerant charge
